SSRS Report In Epicor: How to Modify an Out of the Box Report


    SQL Server Reporting Services (SSRS) is a Microsoft-based reporting platform that is currently integrated into Epicor version 10. Our clients have often needed to modify an out of the box report to suit one of their many business requirements. Naturally, we've become pretty familair with the process of modifying SSRS reports in Epicor. Here, we've gotten the Datix Epicor consulting experts to show you how to modify an out of the box SSRS Report for yourself, no matter the complexity of the report:

    (SSRS Report - code at bottom of page)

    1. Load Epicor. Click on the System Management> Reporting> Report Data Definition.

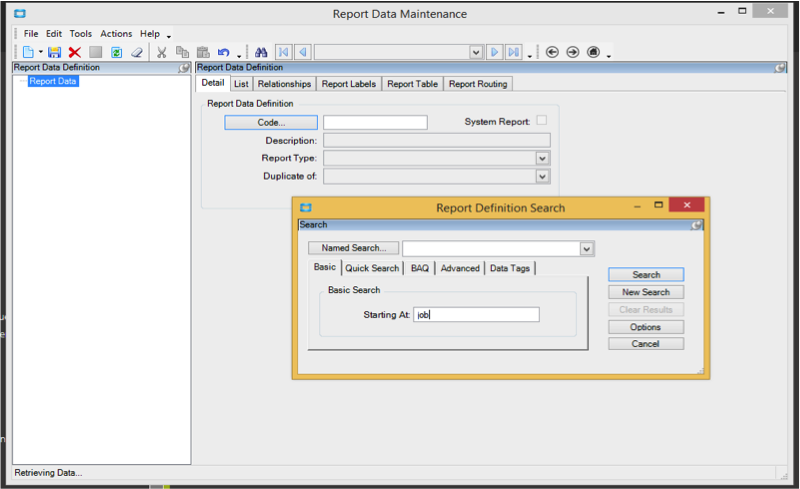

    2. Click the “Code” button to search for the report you are modifying:

    SSRS Report 1

    3. Click Actions> Duplicate Report.

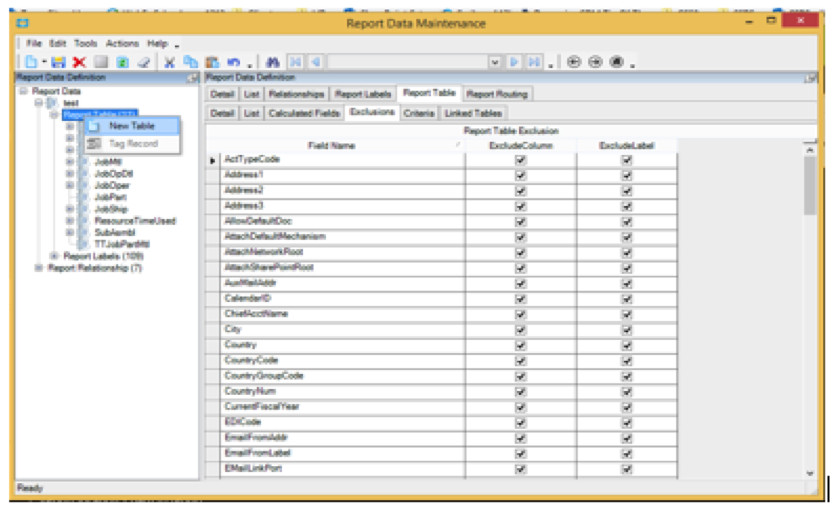

    4. The left side bar will display a cascading tree. Right click on Report Table and Add New Table.
    5. Name it and add a Description.

     SSRS report 2

    • Click Schema Table and search for the table you want to add.
    • Double click to add, then add a sequence number (optional) to change the order of the table in the list
        6. Add Table Relationship.
    • Ricght click Report Relationship in the tree on the left and add new
      • Change description from this table to that that table>
      • Do not choose a key>
      • Child table>
      • Choose: Output (definition only will not output anything)>
      • Add relationship fields.
        • The field must always show the company and the field linking them together (i.e., part number).

    SSRS report 3 7. After adding the relationships, click on the table in the tree on the left. Click the Report Table, then            Exclusions tabs to “un-exclude” or include the fields from the tables needing to be included:

    Modify SSRS report 4        8. Save and close this window.

    9.  Choose Report Style

    SSRS report change 1

    10.  Click the Report ID button to search for your report and double click to open.

    11. Click the new icon and choose New Report Style> Style Detail:

    SSRS report create

    12.  Fill in the following fields:

    • Description (This is what users will see).
    • Type: SQL Server Reporting
    • Choose the data definition (i.e. Job Traveler)
    • Report location. (This is a path to the report.)
    • Output: Database

    SSRS report creation

    13. Navigate to the Report Manager URL

    • SQL Servername/Reports (Not the application server)>
    • Windows authentication enables (User may have issues trying to do this through a VPN)>
    • Choose Main Report> Click Down Arrow to Right of Report> Edit in Report Builder

    Create SSRS report 8

    14.  Make a copy of the Main Report> Save As

    • Save it to the custom reports folder.

    15. Run the Report in Epicor.

    • Make sure to select the report style.
    • Click the Print Preview icon located at the top of the screen.

    buildign SSRS report 1

    16.  Retrieve the GUID from the System Monitor located on the bottom right of the screen. Double click to open.

    • The GUID is the last field on the reports tab under filename and will say REPORTDATABASE: fjaldskfjds;lkfjslkfjds;lkfjds

    create sirs report 3

    • Copy the contents of the field and paste somewhere to save it. Omit “REPORTDATABASE,” to simply save the GUID number.

    17.  Go back to Report Builder: Datasets> Right Click on Report Labels>Dataset Properties.

    create ssrs reporting

    • Use dataset embedded in form.
    • Click on the fx (functions) button.

    Creating SSRS report 1

    18.  Edit the Query:

    • Join on company and company: Po Num and Po Num
      1. Below is the table the user is joining and the fields the user is joining on.
    • Copy from LEFT OUTER JOIN; right before next LEFT OUTER JOIN statement (see below example).
    • After adding the join-statement, add fields (i.e. T5.NewField).

    Example (Code):

    Original Query

    ="SELECT
    T1.RptLanguageID,
    T1.CommentText,
    T1.Company,
    T1.FOB,
    T1.FreightPP,
    T1.OrderDate,
    T1.PONum,
    T1.PrintAs,
    T1.ShipToConName,
    T1.ShipViaCode,
    T1.Calc_AccountRef,
    T1.Calc_BillToAddrList,
    T1.Calc_Buyer,
    T1.Calc_CurDesc,
    T1.Calc_CurSymb,
    CAST(T1.Calc_ExistingDropShipReleases AS nvarchar) AS Calc_ExistingDropShipReleases,
    T1.Calc_FOBDesc,
    CAST(T1.Calc_MultiShiptoAddresses AS nvarchar) AS Calc_MultiShiptoAddresses,
    T1.Calc_PurTerms,
    T1.Calc_ShipToAddrList,
    T1.Calc_ShipVia,
    T1.Calc_VendorContact,
    T1.Calc_VendPhone,
    T1.Calc_VendFax,
    T1.Calc_EMail,
    T1.BuyerID_EMailAddress,
    T1.Vendor_EMailAddress,
    T1.Vendor_FaxNum,
    T1.VendorCnt_EmailAddress,
    T1.Calc_TotDocMiscAmt,
    T1.VendorCnt_FaxNum,
    T2.CommentText AS PODetail_CommentText,
    T2.Company AS PODetail_Company,
    T2.DocUnitCost,
    T2.MfgPartNum,
    T2.MfgPartOpts,
    T2.PartNum,
    T2.POLine,
    T2.PONUM AS PODetail_PONum,
    T2.PUM,
    T2.RevisionNum,
    T2.SubPartNum,
    T2.SubPartOpts,
    T2.SubPartType,
    T2.Taxable,
    T2.VendorPartOpts,
    T2.VenPartNum,
    T2.Calc_CostPer,
    T2.Calc_DtLineDesc,
    T2.Calc_ExtCost,
    T2.Calc_UOMDescription,
    T2.Calc_MfgID,
    T3.[Description],
    T3.DocMiscAmt,
    T3.POLine AS POMisc_POLine,
    T3.PONum AS POMisc_PONum,
    T3.Taxable AS POMisc_Taxable,
    T4.Calc_AccountRef AS RptLiteralsCalc_AccountRef,
    T4.RptLiteralsLFax,
    T4.FreightPP AS RptLiteralsFreightPP,
    T4.RptLiteralsLAuthBy,
    T4.RptLiteralsLChangeOrder,
    T4.RptLiteralsLClosed,
    T4.RptLiteralsLDueDt,
    T4.RptLiteralsLExtPrice,
    T4.RptLiteralsLFOB,
    T4.RptLiteralsLHdng,
    T4.RptLiteralsLJobNum,
    T4.RptLiteralsLLine,
    T4.RptLiteralsLLineChargeSubtotal,
    T4.RptLiteralsLMfgPartNumber,
    T4.RptLiteralsLMiscChargeSubtotal,
    T4.RptLiteralsLMslshS,
    T4.RptLiteralsLOrderDate,
    T4.RptLiteralsLOrderQty,
    T4.RptLiteralsLOurPartNumber,
    T4.RptLiteralsLPg,
    T4.RptLiteralsLPhone,
    T4.RptLiteralsLPONum,
    T4.RptLiteralsLPrtRvDes,
    T4.RptLiteralsLQty,
    T4.RptLiteralsLResalNo,
    T4.RptLiteralsLRevised,
    T4.RptLiteralsLSeeBelow,
    T4.RptLiteralsLSeq,
    T4.RptLiteralsLShipTo,
    T4.RptLiteralsLShipVia,
    T4.RptLiteralsLShRelReq,
    T4.RptLiteralsLSubstitute,
    T4.RptLiteralsLSubstitutedFor,
    T4.RptLiteralsLSupplierPartNumber,
    T4.RptLiteralsLTax,
    T4.RptLiteralsLTerms,
    T4.RptLiteralsLTotal,
    T4.RptLiteralsLUnitPric,
    T4.RptLiteralsLVend,
    T4.RptLiteralsLLnMsChrg,
    T4.RptLiteralsLDesc,
    T4.PONum AS RptLiteralsPONum,
    T4.RptLiteralsLAmt
    FROM POHeader_" + Parameters!TableGuid.Value + " T1
    LEFT OUTER JOIN PODetail_" + Parameters!TableGuid.Value + " T2
    ON T1.Company = T2.Company AND T1.PONum = T2.PONUM
    LEFT OUTER JOIN POMisc_" + Parameters!TableGuid.Value + " T3
    ON T1.Company = T3.Company AND T1.PONum = T3.PONum
    LEFT OUTER JOIN RptLabels_" + Parameters!TableGuid.Value + " T4
    ON T1.RptLanguageID = T4.RptLanguageID"



     New Query

    New Query
    ="SELECT
    T1.RptLanguageID,
    T1.CommentText,
    T1.Company,
    T1.FOB,
    T1.FreightPP,
    T1.OrderDate,
    T1.PONum,
    T1.PrintAs,
    T1.ShipToConName,
    T1.ShipViaCode,
    T1.Calc_AccountRef,
    T1.Calc_BillToAddrList,
    T1.Calc_Buyer,
    T1.Calc_CurDesc,
    T1.Calc_CurSymb,
    CAST(T1.Calc_ExistingDropShipReleases AS nvarchar) AS Calc_ExistingDropShipReleases,
    T1.Calc_FOBDesc,
    CAST(T1.Calc_MultiShiptoAddresses AS nvarchar) AS Calc_MultiShiptoAddresses,
    T1.Calc_PurTerms,
    T1.Calc_ShipToAddrList,
    T1.Calc_ShipVia,
    T1.Calc_VendorContact,
    T1.Calc_VendPhone,
    T1.Calc_VendFax,
    T1.Calc_EMail,
    T1.BuyerID_EMailAddress,
    T1.Vendor_EMailAddress,
    T1.Vendor_FaxNum,
    T1.VendorCnt_EmailAddress,
    T1.Calc_TotDocMiscAmt,
    T1.VendorCnt_FaxNum,
    T2.CommentText AS PODetail_CommentText,
    T2.Company AS PODetail_Company,
    T2.DocUnitCost,
    T2.MfgPartNum,
    T2.MfgPartOpts,
    T2.PartNum,
    T2.POLine,
    T2.PONUM AS PODetail_PONum,
    T2.PUM,
    T2.RevisionNum,
    T2.SubPartNum,
    T2.SubPartOpts,
    T2.SubPartType,
    T2.Taxable,
    T2.VendorPartOpts,
    T2.VenPartNum,
    T2.Calc_CostPer,
    T2.Calc_DtLineDesc,
    T2.Calc_ExtCost,
    T2.Calc_UOMDescription,
    T2.Calc_MfgID,
    T3.[Description],
    T3.DocMiscAmt,
    T3.POLine AS POMisc_POLine,
    T3.PONum AS POMisc_PONum,
    T3.Taxable AS POMisc_Taxable,
    T4.Calc_AccountRef AS RptLiteralsCalc_AccountRef,
    T4.RptLiteralsLFax,
    T4.FreightPP AS RptLiteralsFreightPP,
    T4.RptLiteralsLAuthBy,
    T4.RptLiteralsLChangeOrder,
    T4.RptLiteralsLClosed,
    T4.RptLiteralsLDueDt,
    T4.RptLiteralsLExtPrice,
    T4.RptLiteralsLFOB,
    T4.RptLiteralsLHdng,
    T4.RptLiteralsLJobNum,
    T4.RptLiteralsLLine,
    T4.RptLiteralsLLineChargeSubtotal,
    T4.RptLiteralsLMfgPartNumber,
    T4.RptLiteralsLMiscChargeSubtotal,
    T4.RptLiteralsLMslshS,
    T4.RptLiteralsLOrderDate,
    T4.RptLiteralsLOrderQty,
    T4.RptLiteralsLOurPartNumber,
    T4.RptLiteralsLPg,
    T4.RptLiteralsLPhone,
    T4.RptLiteralsLPONum,
    T4.RptLiteralsLPrtRvDes,
    T4.RptLiteralsLQty,
    T4.RptLiteralsLResalNo,
    T4.RptLiteralsLRevised,
    T4.RptLiteralsLSeeBelow,
    T4.RptLiteralsLSeq,
    T4.RptLiteralsLShipTo,
    T4.RptLiteralsLShipVia,
    T4.RptLiteralsLShRelReq,
    T4.RptLiteralsLSubstitute,
    T4.RptLiteralsLSubstitutedFor,
    T4.RptLiteralsLSupplierPartNumber,
    T4.RptLiteralsLTax,
    T4.RptLiteralsLTerms,
    T4.RptLiteralsLTotal,
    T4.RptLiteralsLUnitPric,
    T4.RptLiteralsLVend,
    T4.RptLiteralsLLnMsChrg,
    T4.RptLiteralsLDesc,
    T4.PONum AS RptLiteralsPONum,
    T4.RptLiteralsLAmt
    T5.PartNum
    FROM POHeader_" + Parameters!TableGuid.Value + " T1
    LEFT OUTER JOIN PODetail_" + Parameters!TableGuid.Value + " T2
    ON T1.Company = T2.Company AND T1.PONum = T2.PONUM
    LEFT OUTER JOIN POMisc_" + Parameters!TableGuid.Value + " T3
    ON T1.Company = T3.Company AND T1.PONum = T3.PONum
    LEFT OUTER JOIN Part_" + Parameters!TableGuid.Value + " T5
    ON T2.Company = T5.Company AND T2.PartNum = T5.PartNum
    LEFT OUTER JOIN RptLabels_" + Parameters!TableGuid.Value + " T4
    ON T1.RptLanguageID = T4.RptLanguageID"



    19.  Add Field

    • Add Query Field> Name and Source Field
    • Run to Check Syntax Error
    • Add Field to Form
      • Get rid of the word “first,” if user is dragging and dropping.

    SSRS report complete



    20.  Run the report with your saved GUID by right clicking on Parameters in the tree on the left of the screen and Add Parameter:

    SSRS reports generate

    21.  Click Default Values> Specify Values and paste the GUID from earlier into the expression box.

    The user has successfully modified an out of the box SSRS report!
